Lan Handling Technologies

Lan Handling Technologies develops, manufactures and installs handling systems for the food and pharmaceutical industries. The strong growth of the internationally operating company demanded different accommodation. Lan therefore asked cepezed for a new building that would support and express their business mentality. cepezed and cepezedinterieur designed the building near Tilburg. cepezedbouwteam assisted in a strategic process and were responsible for coordination of the implementation.

  • client(s)
  • Lan Handling Technologies
  • location
  • Tilburg
  • user(s)
  • Lan Handling Technologies
  • expertise(s)
  • cepezed, cepezedinterieur, cepezedbouwteam

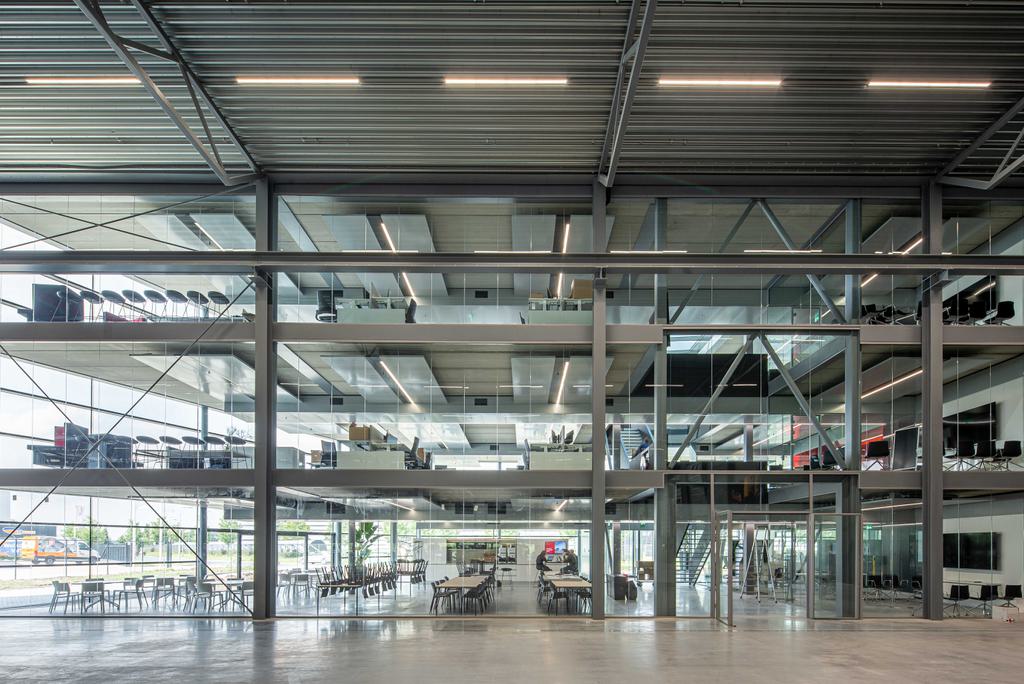

Minimal distinction between office and production hall

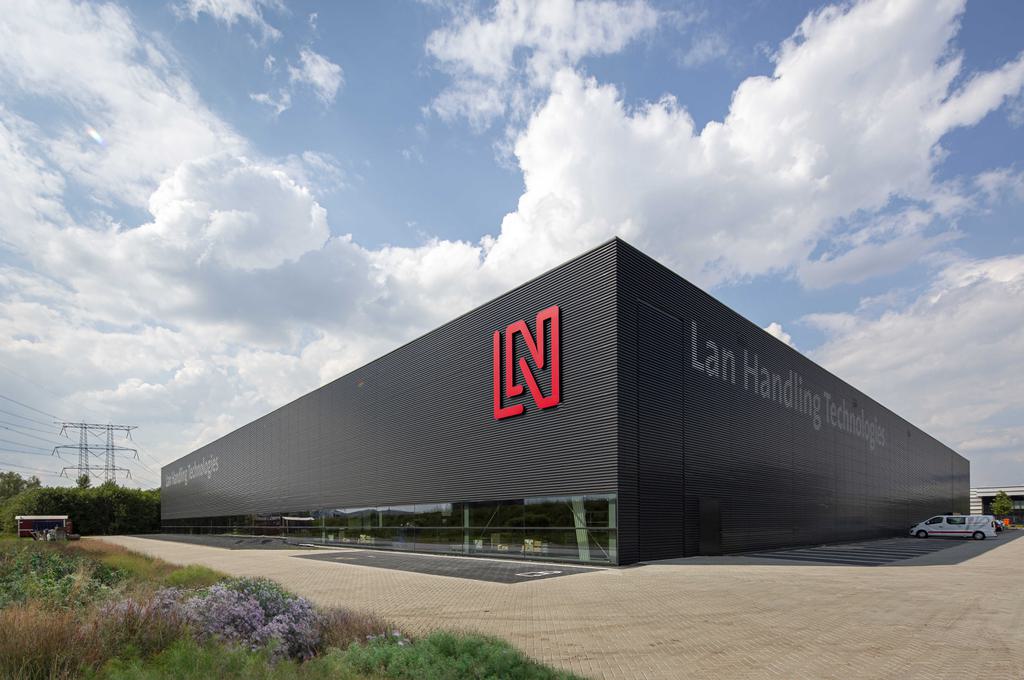

One transparent building with a single atmosphere where the distinction between the offices and the production hall is minimal. That was the brief for the design of the new premises of Lan Handling Technologies on a new building plot in Berkel-Enschot.

Minimal distinction between office and production hall
lucas van der wee | cepezed

Four parallel production lines

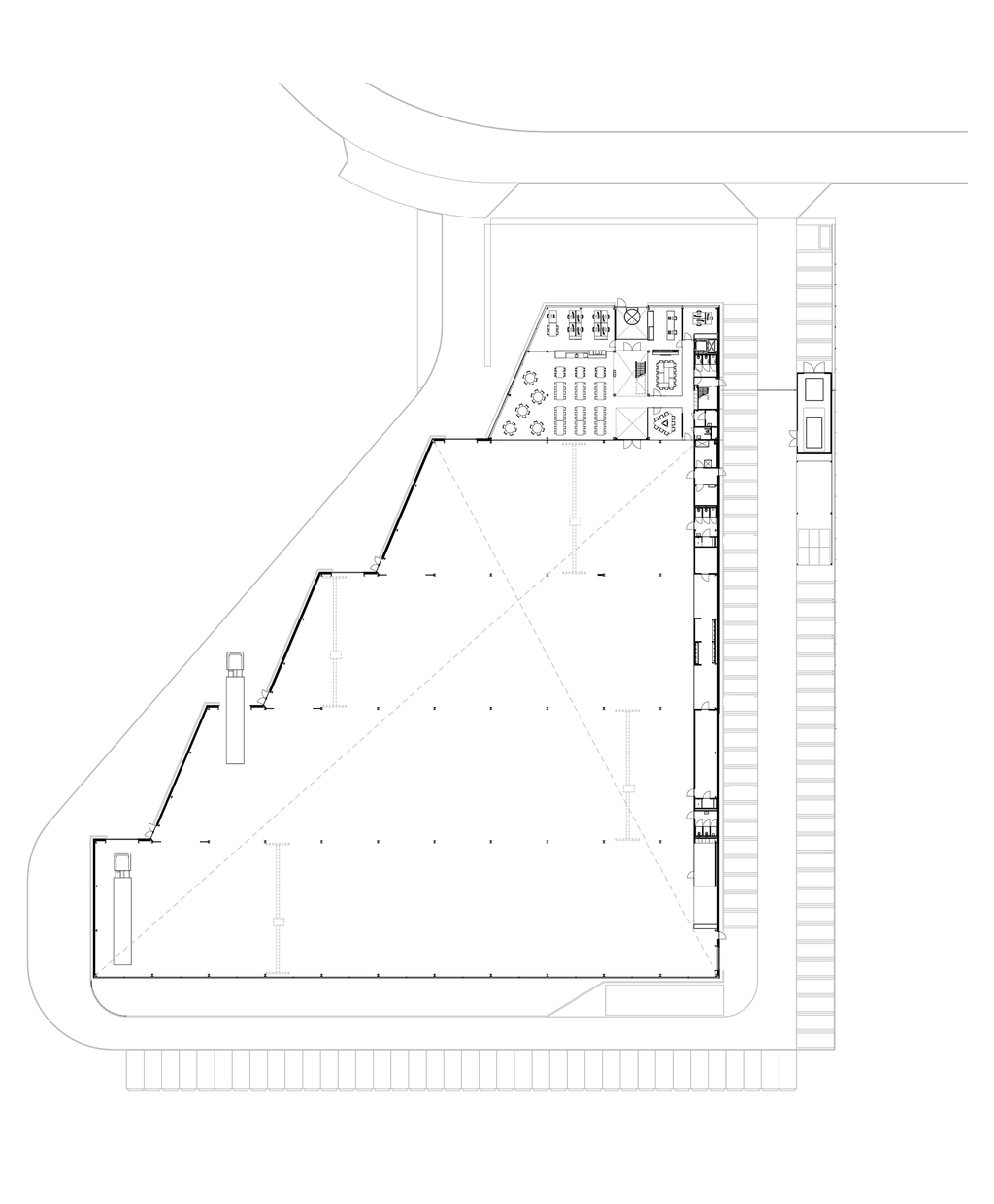

The almost triangular contour of the approximately 11,000 m² plot was an important starting point for the architectural design. The production hall consists of four parallel lines, each of different lengths. The office is situated at the head of the plot.

Four parallel production lines
cepezed
lucas van der wee | cepezed

On dispatch

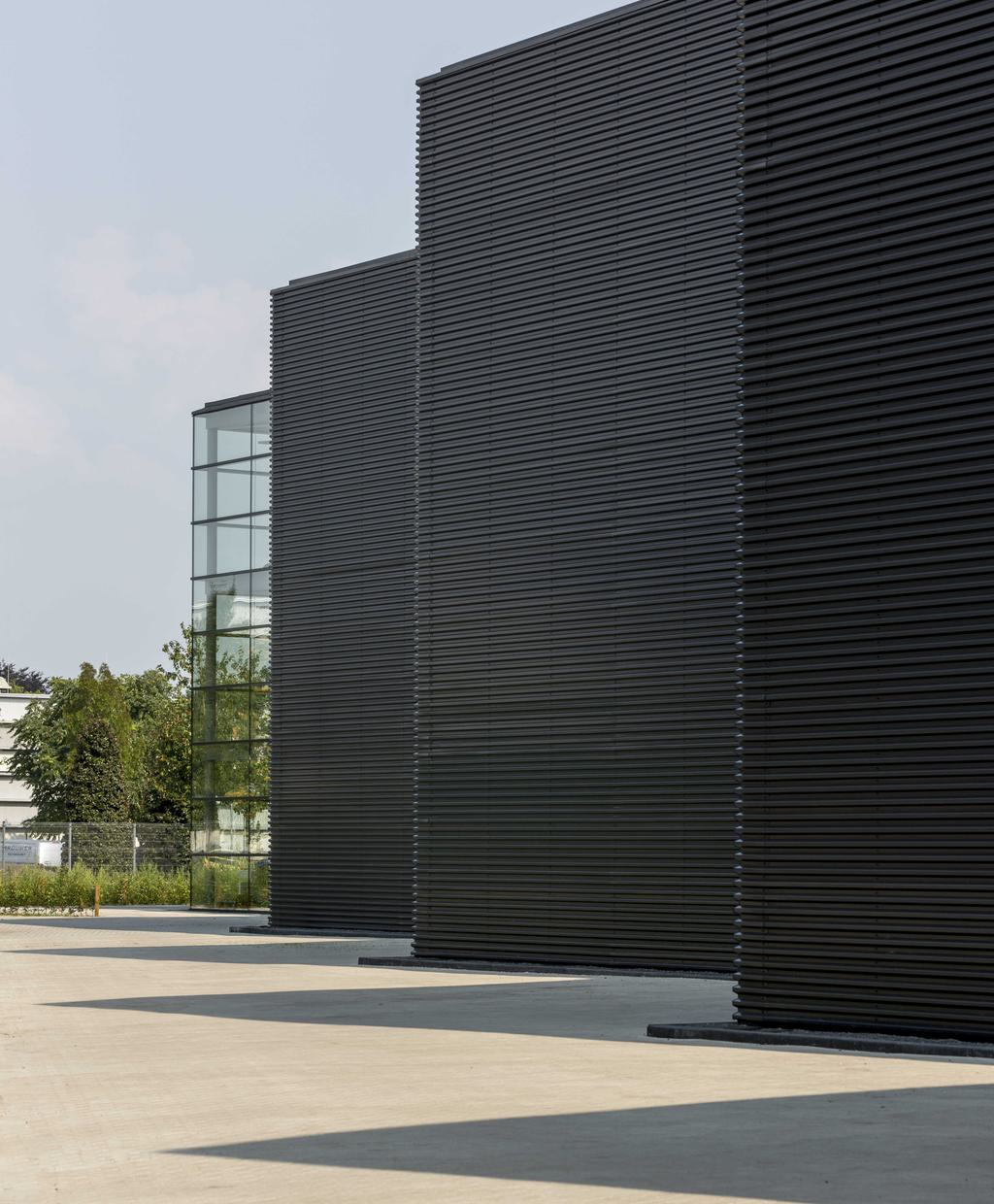

Around the hall is the dispatch route, with next to it the parking area for visitors and staff. The dispatch entrances are all at the slanting ends of the production lines, which provide the main shape of the building on the west side with its characteristic saw-tooth structure.

On dispatch
lucas van der wee | cepezezd

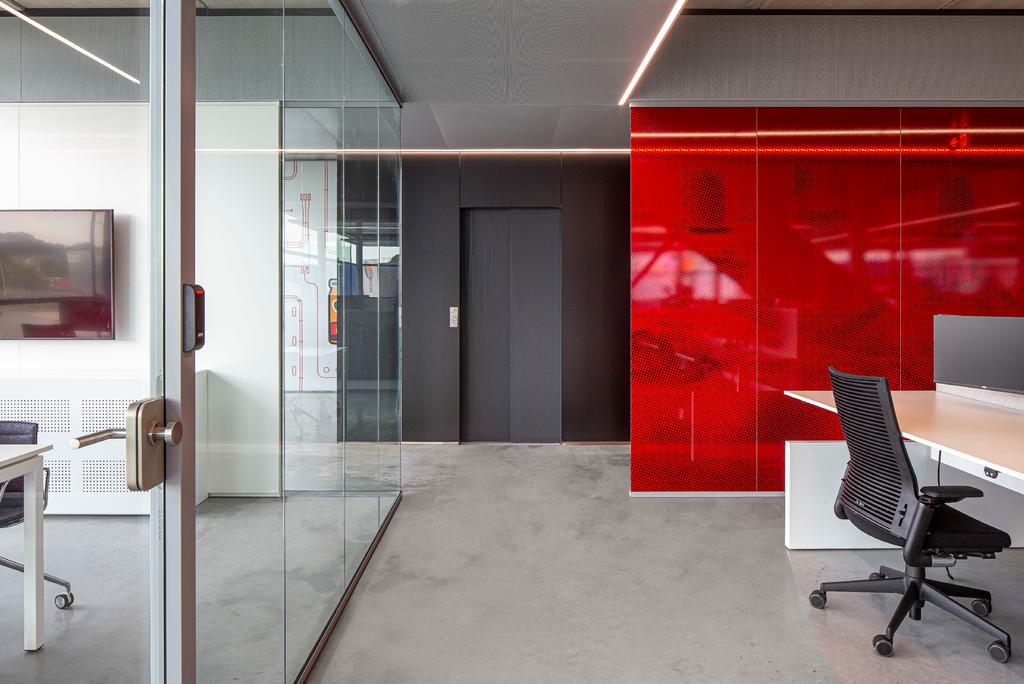

The workplaces

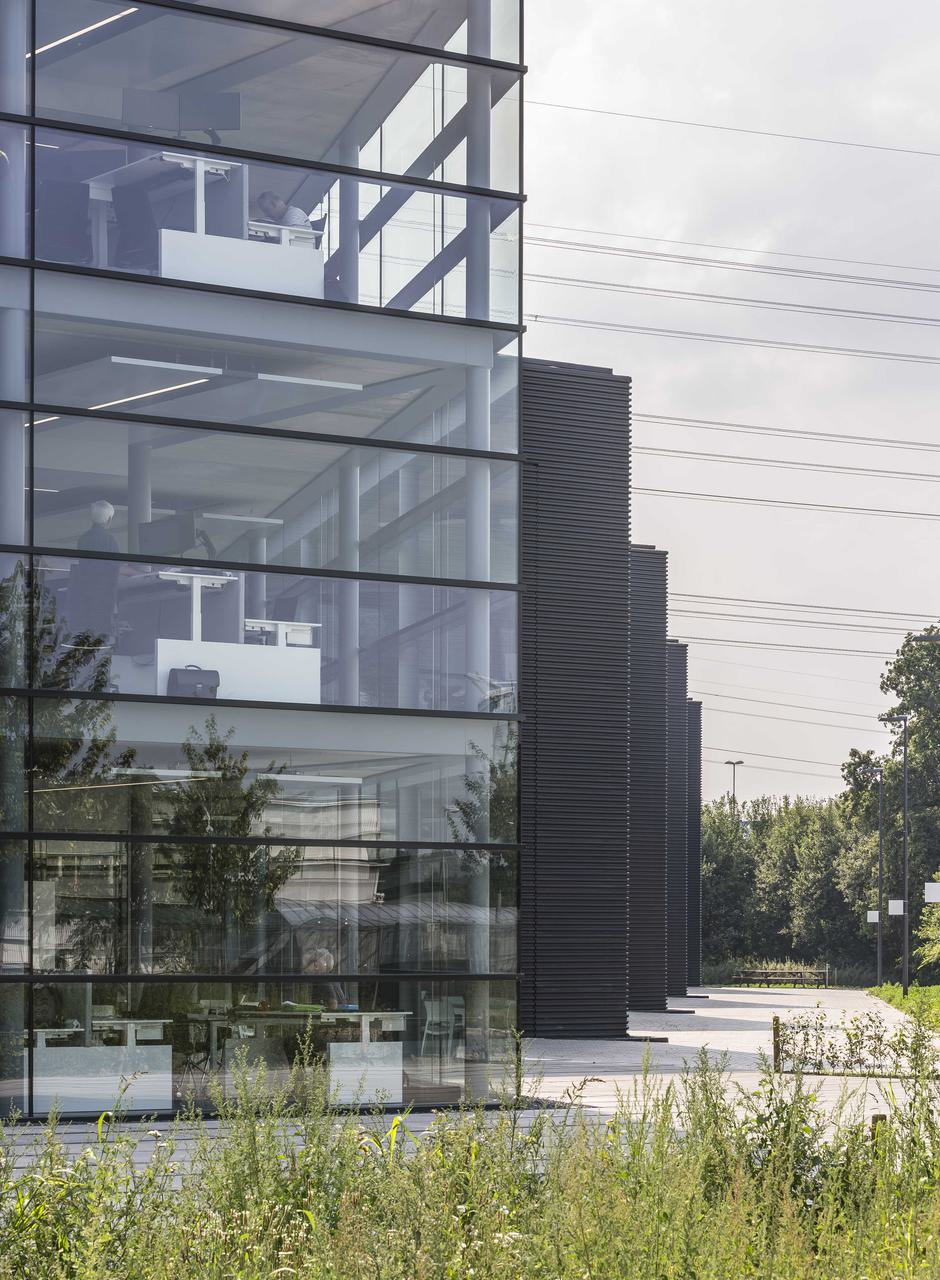

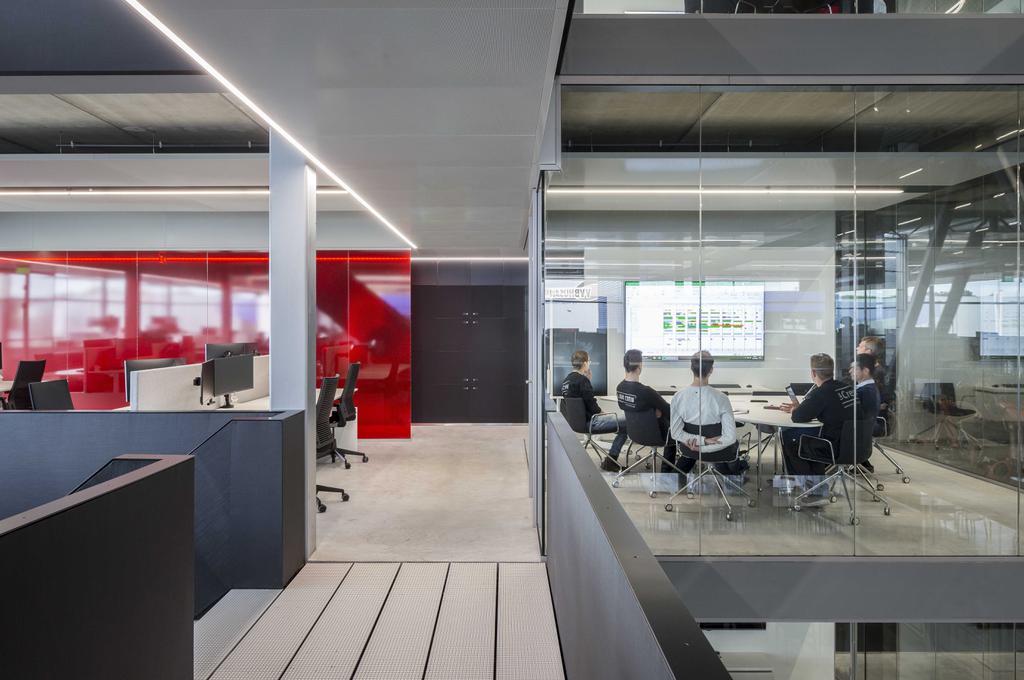

The modern office section at the head is the shortest of the building strips. This part of the building is divided into two zones. The east side includes the conference and meeting rooms. Here, there is also a strip along the façade with all the facilities that do not need daylight, such as the technical area and toilets.

The workplaces
lucas van der wee | cepezed
lucas van der wee | cepezed
lucas van der wee | cepezed
lucas van der wee | cepezed

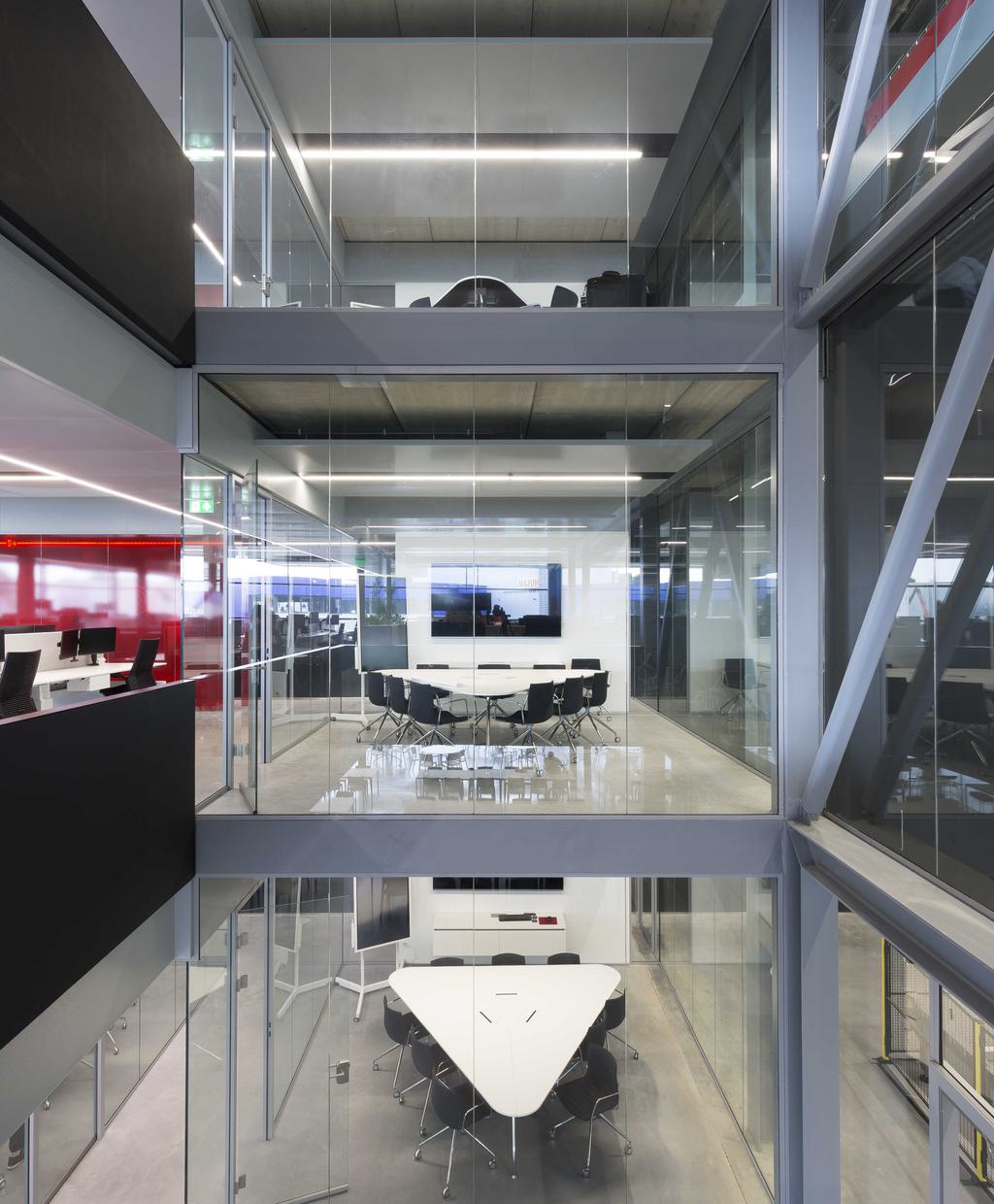

Visual connection

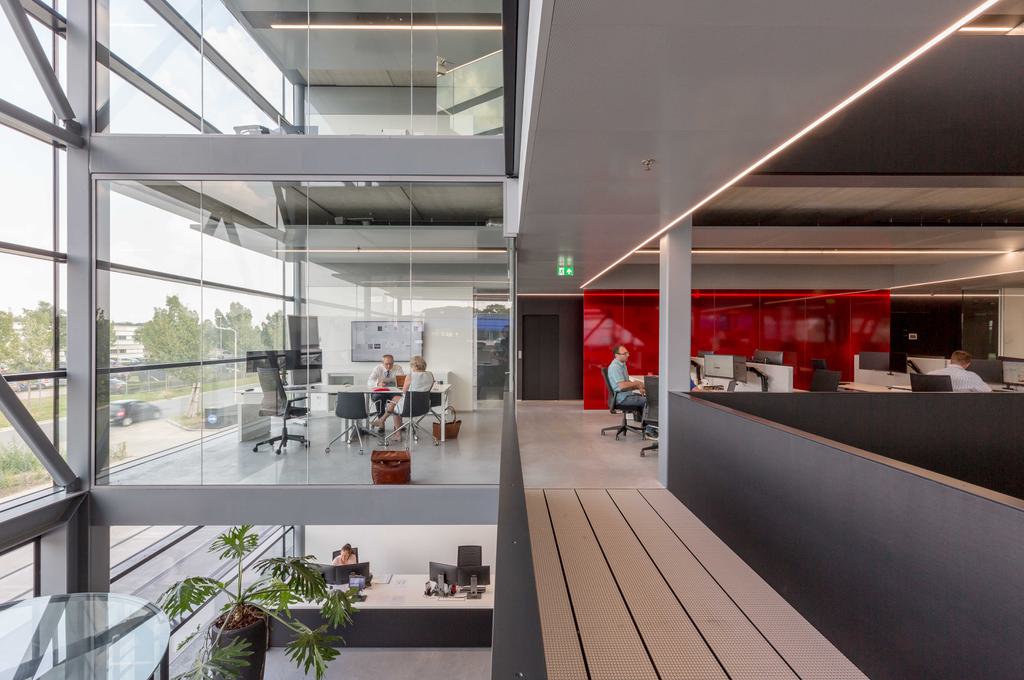

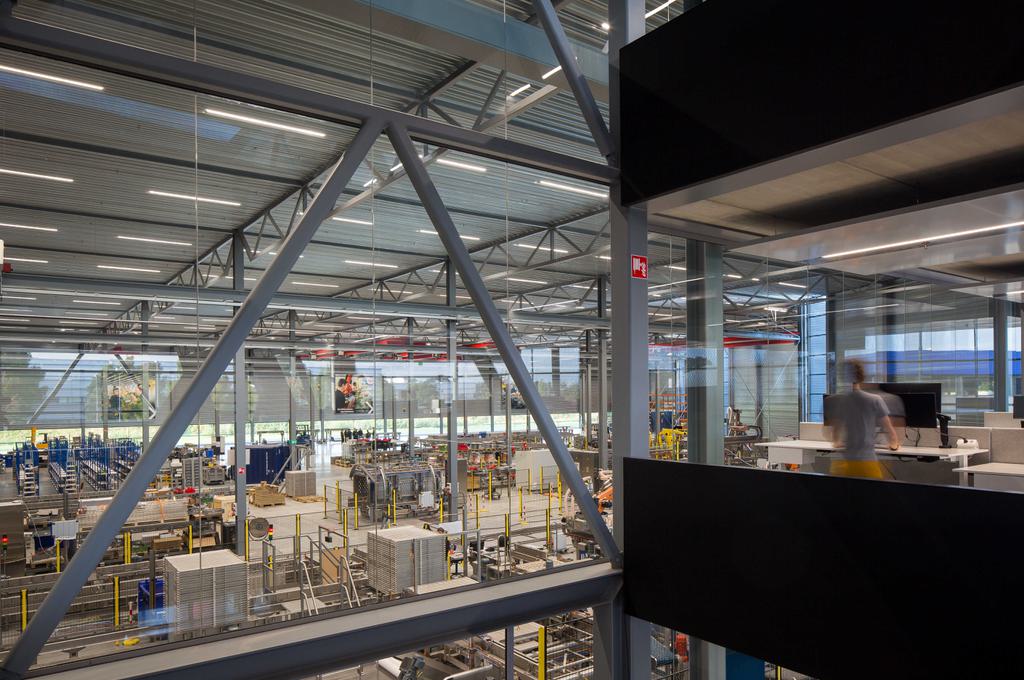

The west side of the office volume houses open-plan offices. These are visually connected to every part of the company. They overlook the production hall and the meeting rooms, but also each other via the daylight-rich atrium in the middle of the office block.

Visual connection
lucas van der wee | cepezed
lucas van der wee | cepezed

partners

  • client: lan handling technologies
  • interior design: cepezedinterieur
  • stability: imd raadgevende ingenieurs
  • building services: nelissen ingenieursbureau b.v.
  • building physics & sustainability: dgmr
  • construction coordination: cepezedbouwteam
  • contractor steel construction: hutten metaal staalbouw b.v.
  • contractor building services: hoppenbrouwers techniek b.v.
  • façades: erdo b.v.
  • glass façades: ifs building systems
